Fans / Fan accessories

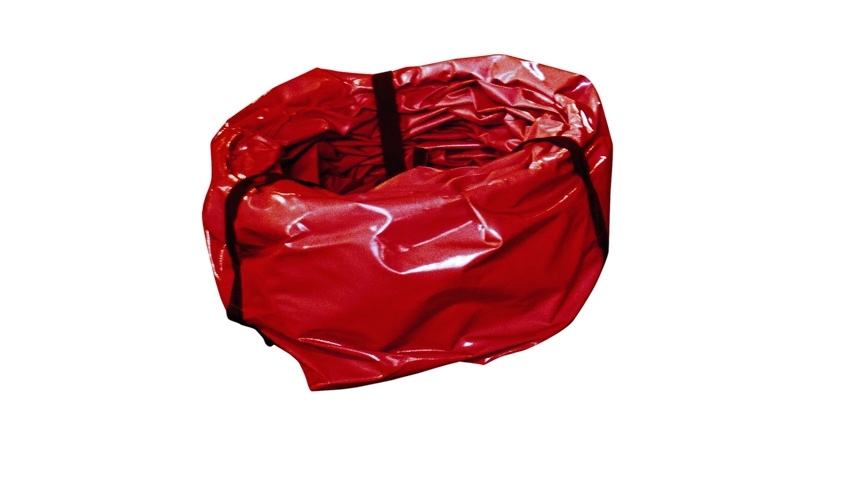

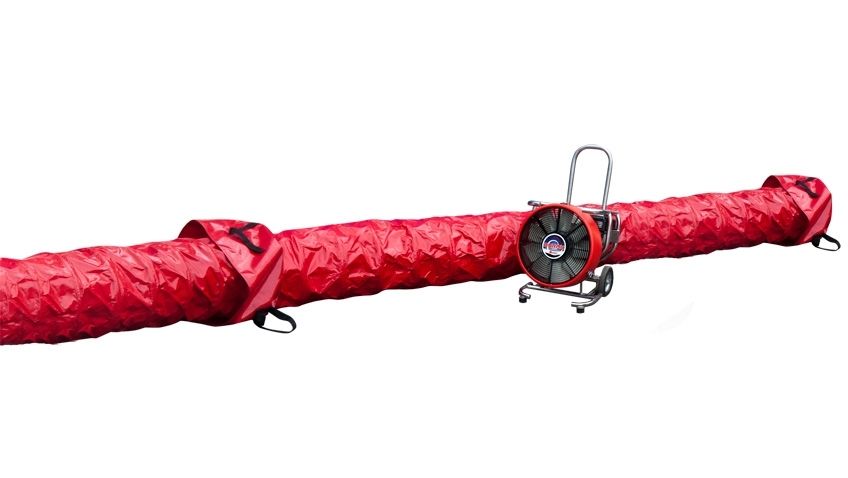

Ventilation Duct for DPE 15, DPM 20 / DPM 40


  • For channeling fan air or extracting smoke in complex operations for ventilation of enclosed premises, collectors, cellars and wells, for supplying foam when used with an adapter-foam generator.
  • Mounted on the casing of the smoke exhauster with / without installed foam generator.
  • Fasteners allow the use of several ducts
  for DPE 15, DPM 20 for DPM 40
Extended length, mm 5000
Inside diameter, mm  430 / 575
Material wear-resistant polymer
  waterproof material
Dimensions during
transportation (LxWxH), mm 600х600х400 750х750х500
Weight, kg  10 15
