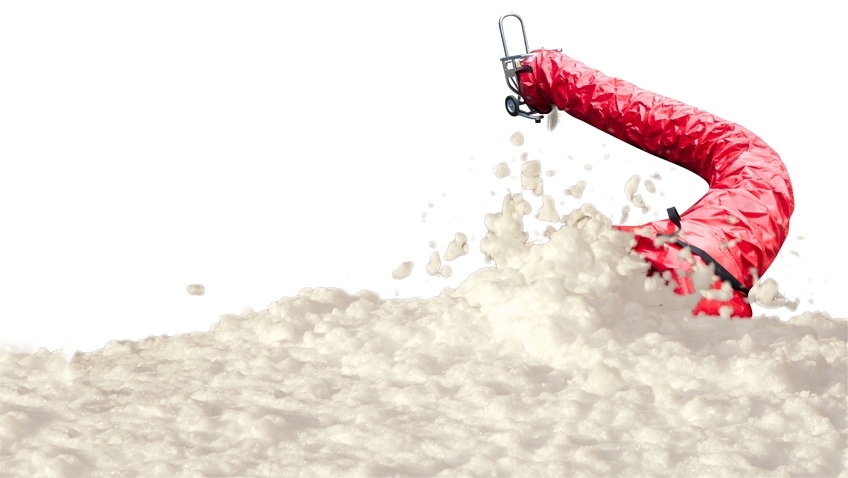

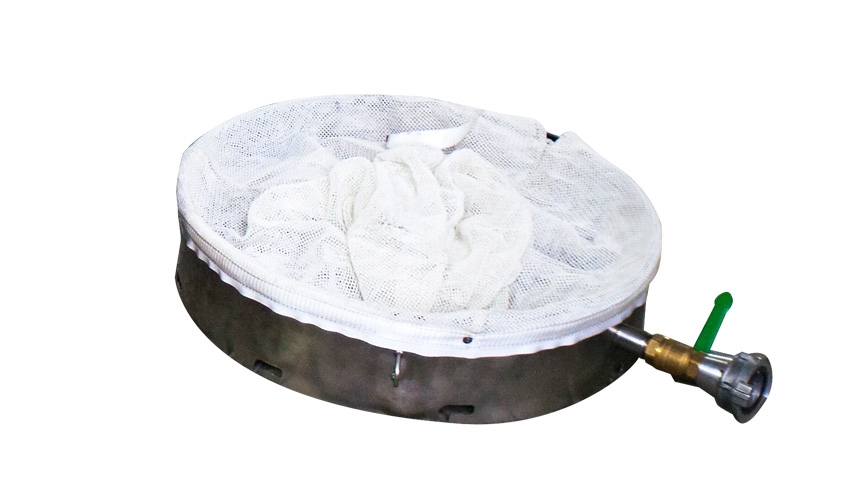

• Converts the fan into a high-expansion foam generator
  • Works with an in-line proportioner at 200 l/min.
  • The fastening elements allow installation on the front of the fan.
  for DPE 15, DPM 20 for  DPM 40
Foam solution flow rate, l/min 70
Foam expansion ratio, no less than  200
Material
Body stainless steel
 Strainer polymeric fiber
Strainer olymeric fiber
Dimensions (LxWxH), mm 760х160х480 890х160х630
Weight, kg 8 10
